Artrys construction systems are a wide, complete range of special products, designed with changes in mind. The base of the support system, the console and the aluminum profile, the service status in the upper corner of the spacing (e.g. 30 mm space at the connection of the profiles). Consoles are offered in three variants: aluminum, stainless steel, aluminum-plastic (i.e. passive).
ACP3 Corner Profile
The ACP3 corner profile, together with the AG80 holder are used in window reveal sections. Just like in the case of the ACP2 + AG210 system, they enable rivets to be fixed at the correct distanc-es from the edges of the panel, making the whole assembly more aesthetically pleasing.
ARTRYS CORNER PROFILES - ACP3:

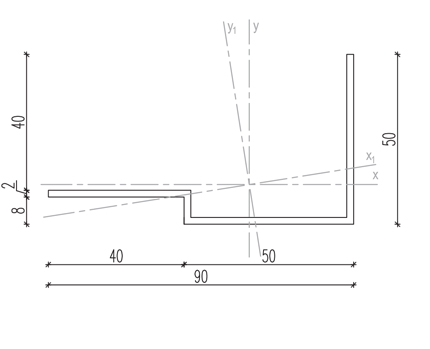

DATA FOR PROFILE ACP3:
Jx = 3,75 cm4
Jy = 23,92 cm4
Jx1 = 3,20 cm4
Jy1 = 24,48 cm4
Wx = 1,09 cm³
Wy = 4,09 cm³
Wx1 = 1,09 cm³
Wy1 = 4,21 cm³
A = 2,82 cm²
Masa = 0,77 kg/m
Material:
Aluminum EN AW 6060 T6/T66

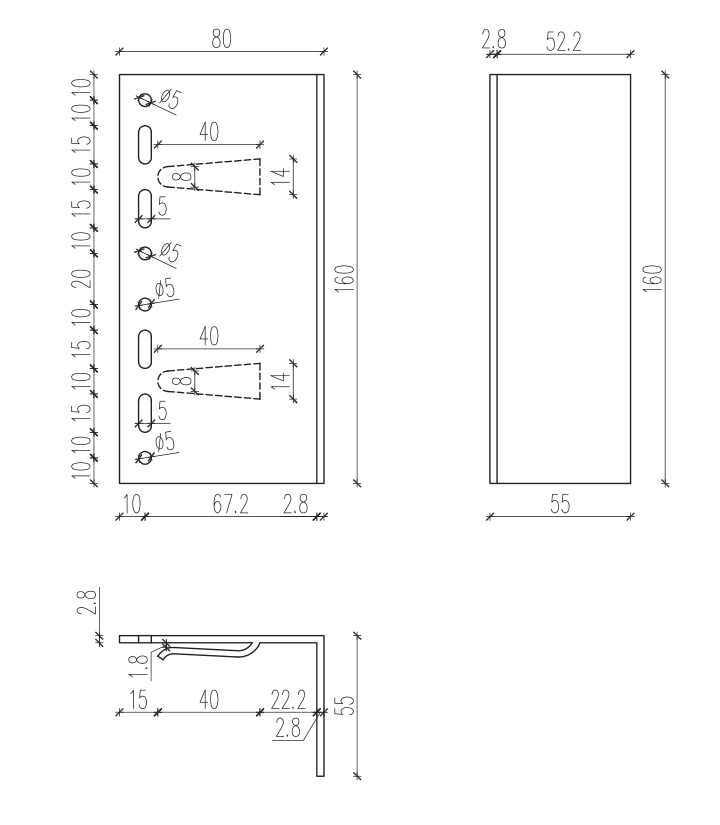

ARTRYS CORNER GRIP LARGE - AGL80:
Material:
Aluminum EN AW 6060 T6

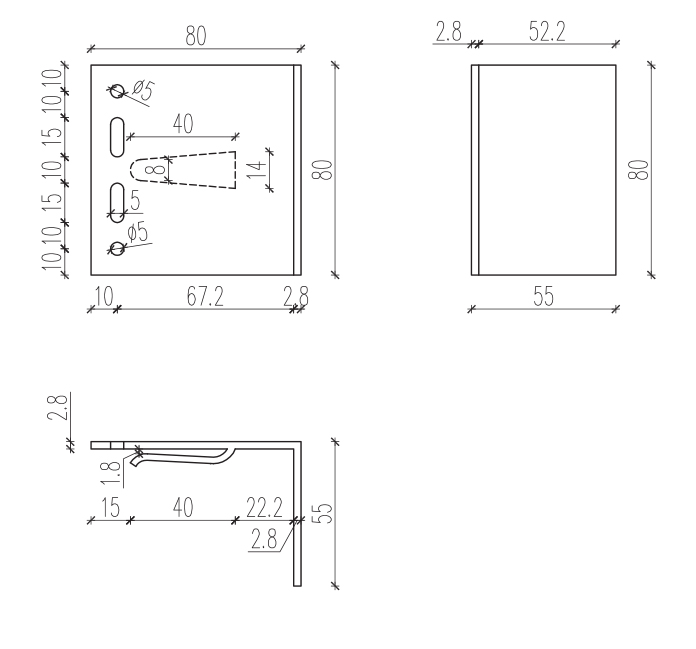

ARTRYS CORNER GRIP MEDIUM - AGM80:
Material:
Aluminum EN AW 6060 T6

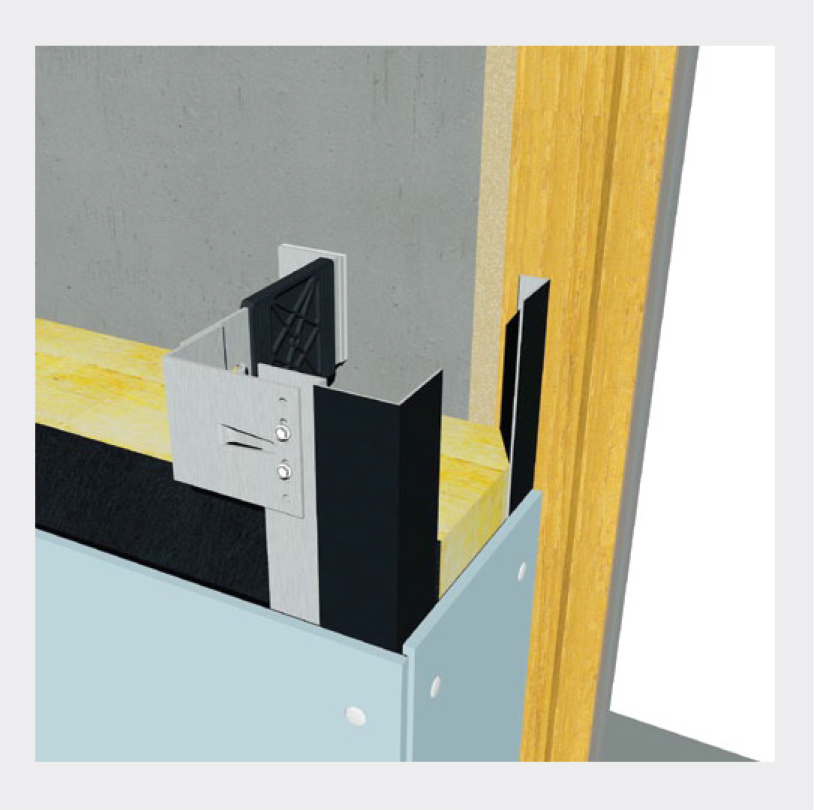

WINDOW CONNECTION - VERTICAL GLYPH
1.
ARTRYS BRACKET PASSIVE - BLP X/BMP X
2a.
ARTRYS L PROFILE - ALP 45/20/2
2b.
ARTRYS L PROFILE - ALP 45/55/2
5.
ISOLATOR - PVC L/PVC M
6.
CLADDING PANEL
8.
RIVET
9.
SELF-DRILLING SCREW
10.
ANCHOR
11.
MINERAL WOOL WITH VEIL
15.
SELF-TURNING SCREW
24c.
ARTRYS CORNER PROFILES - ACP3
25b.
ARTRYS CORNER GRIP - AGL80/AGM80
