Special profiles

Profile Omega AOPACP1 Corner ProfileACP2 Corner ProfileCorner profile ACP3Window Profile AWP1WINDOW PROFILE AWP2ALP210 REINFORCED ANGLE
Artrys construction systems are a wide, complete range of special products, designed with changes in mind. The base of the support system, the console and the aluminum profile, the service status in the upper corner of the spacing (e.g. 30 mm space at the connection of the profiles). Consoles are offered in three variants: aluminum, stainless steel, aluminum-plastic (i.e. passive).

Window Profile AWP2

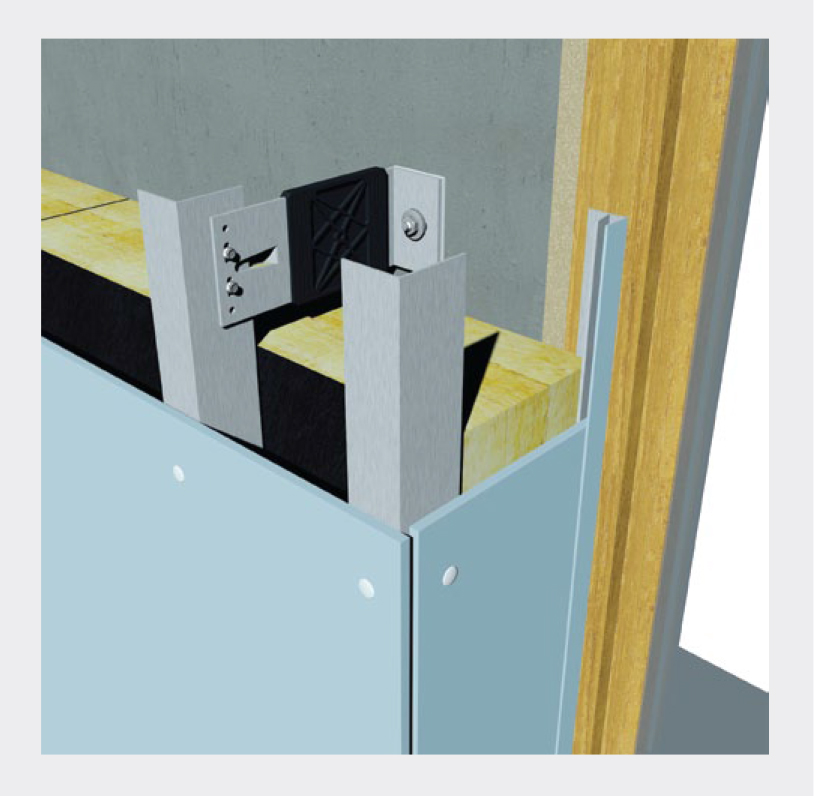

The AWP2 F window profile allows 8 mm cladding panels to be installed as window reveals. It enables panels to be adjusted in a range of 20 mm and can be coated in any colour.

ARTRYS WINDOW PROFILE - AWP2

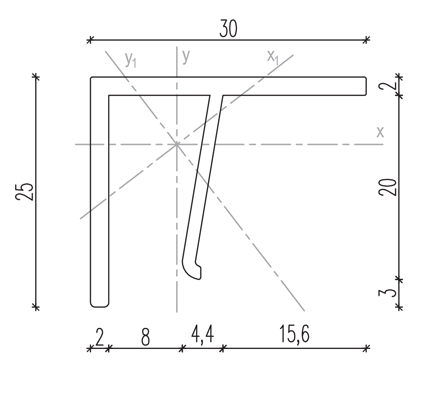

DATA FOR PROFILE AWP2
Jx = 28,44 cm4 Jy = 28,44 cm4
Jx1 = 41,65 cm4 Jy1 = 15,23 cm4
Wx = 4,39 cm³ Wy = 4,39 cm³
Wx1 = 7,18 cm³ Wy1 = 4,35 cm³
A = 3,88 cm²Weight = 1,06 kg/m
Material:
Aluminum EN AW 6060 T6/T66

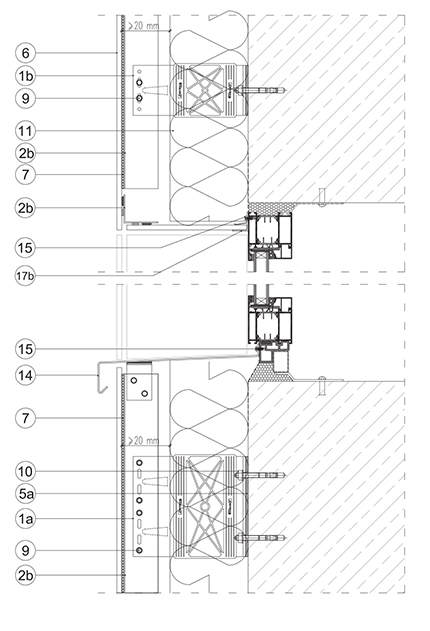

WINDOW CONNECTION – HORIZONTAL GLYPH, WINDOWSILL

1a.ARTRYS BRACKET LARGE PASSIVE - BLP X
1b.ARTRYS BRACKET MEDIUM PASSIVE - BMP X
2b.ARTRYS L PROFILE - ALP 45/55/2
5a.ISOLATOR LRAGE - PVC L
5b.ISOLATOR MEDIUM - PVC M
6.CLADDING PANEL
8.RIVET
9.SELF-DRILLING SCREW
10.ANCHOR
11.MINERAL WOOL WITH VEIL
14.WINDOWSILL
15.SELF-TURNING SCREW
17b.ARTRYS WINDOW PROFILE - AWP2

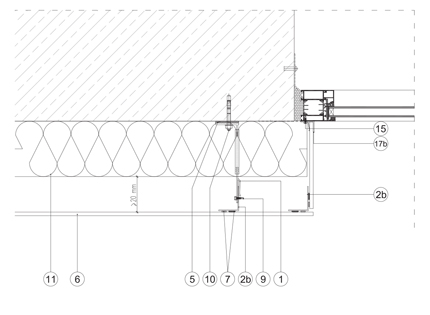

WINDOW CONNECTION- VERTICAL GLYPH

1.ARTRYS BRACKET PASSIVE - BLP X/BMP X
2b.ARTRYS L PROFILE - ALP 45/55/2
5.ISOLATOR - PVC L/PVC M
6.CLADDING PANEL
8.RIVET
9.SELF-DRILLING SCREW
10.ANCHOR
11.MINERAL WOOL WITH VEIL
15.SELF-TURNING SCREW
17b.ARTRYS WINDOW PROFILE - AWP2
