Information about Standard Fasteners – Riveted System
Artrys construction systems are a wide, complete range of special products, designed with changes in mind. The base of the support system, the console and the aluminum profile, the service status in the upper corner of the spacing (e.g. 30 mm space at the connection of the profiles). Consoles are offered in three variants: aluminum, stainless steel, aluminum-plastic (i.e. passive).
Information about Standard Fasteners - Riveted System
(VERTICAL PROFILE OF THE SYSTEM)
CONNECTION WITH THE ATTIC AND GROUND
1a.
ARTRYS BRACKET LARGE PASSIVE - BLP X
1b.
ARTRYS BRACKET MEDIUM PASSIVE - BMP X
2b.
ARTRYS L PROFILE - ALP 45/55/2
5a.
ISOLATOR LARGE - PVC L
5b.
ISOLATOR MEDIUM - PVC M
6
CLADDING PANEL
8
RIVET
9
SELF-DRILLING SCREW
10
ANCHOR
11
MINERAL WOOL WITH VEIL
12
SELF-TURNING SCREW
13
FLASHING
EXTERNAL CORNER CONNECTION
1
ARTRYS BRACKET PASSIVE - BLP X/BMP X
2b.
ARTRYS L PROFILE - ALP 45/55/2
3c.
ARTRYS T PROFILE - ATP 105/55/2
5
ISOLATOR - PVC L/PVC M
6
CLADDING PANEL
8
RIVET
9
SELF-DRILLING SCREW
10
ANCHOR
11
MINERAL WOOL WITH VEIL
WINDOW CONNECTION HORZONTAL GLYPH
1a.
ARTRYS BRACKET LARGE PASSIVE - BLP X
1b.
ARTRYS BRACKET MEDIUM PASSIVE - BMP X
2a.
ARTRYS L PROFILE - ALP 45/20/2
2b.
ARTRYS L PROFILE - ALP 45/55/2
5a.
ISOLATOR LARGE - PVC L
5b.
ISOLATOR MEDIUM - PVC M
6
CLADDING PANEL
8
RIVET
9
SELF-DRILLING SCREW
10
ANCHOR
11
MINERAL WOOL WITH VEIL
14
WINDOWSILL
15
SELF-TURNING SCREW
WINDOW CONNECTION VERTICAL GLYPH
1
ARTRYS BRACKET PASSIVE - BLP X/BMP X
2a.
ARTRYS L PROFILE - ALP 45/20/2
2b.
ARTRYS L PROFILE - ALP 45/55/2
5
ISOLATOR - PVC L/PVC M
6
CLADDING PANEL
8
ADHESIVE + TAPE
9
SELF-DRILLING SCREW
10
ANCHOR
11
MINERAL WOOL WITH VEIL
15
SELF-TURNING SCREW
Information about Standard Fasteners – Adhesive System
Artrys construction systems are a wide, complete range of special products, designed with changes in mind. The base of the support system, the console and the aluminum profile, the service status in the upper corner of the spacing (e.g. 30 mm space at the connection of the profiles). Consoles are offered in three variants: aluminum, stainless steel, aluminum-plastic (i.e. passive).
Information about Standard Fasteners - Adhesive System
(VERTICAL PROFILE SYSTEM)
CONNECTION WITH ATTICS AND LAND
1a.
ARTRYS BRACKET LARGE PASSIVE - BLP X
1b.
ARTRYS BRACKET MEDIUM PASSIVE - BMP X
2b.
ARTRYS L PROFILE - ALP 45/55/2
5a.
ISOLATOR LARGE - PVC L
5b.
ISOLATOR MEDIUM - PVC M
6
CLADDING PANEL
8
ADHESIVE + TAPE
9
SELF-DRILLING SCREW
10
ANCHOR
11
MINERAL WOOL WITH VEIL
12
PERFORATED ANGLE COVER
13
FLASHING

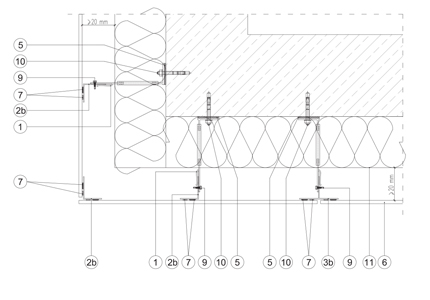

OUTWARD CORNER
1
ARTRYS BRACKET PASSIVE - BLP X/BMP X
2b.
ARTRYS L PROFILE - ALP 45/55/2
3c.
ARTRYS T PROFILE - ATP 105/55/2
5
ISOLATOR - PVC L/PVC M
6
CLADDING PANEL
8
ADHESIVE + TAPE
9
SELF-DRILLING SCREW
10
ANCHOR
11
MINERAL WOOL WITH VEIL
WINDOW CONNECTION HORZONTAL GLYPH, WINDOWSILL -
1a.
ARTRYS BRACKET LARGE PASSIVE - BLP X
1b.
ARTRYS BRACKET MEDIUM PASSIVE - BMP X
2a.
ARTRYS L PROFILE - ALP 45/20/2
2b.
ARTRYS L PROFILE - ALP 45/55/2
5a.
ISOLATOR LARGE - PVC L
5b.
ISOLATOR MEDIUM - PVC M
6
CLADDING PANEL
8
ADHESIVE + TAPE
9
SELF-DRILLING SCREW
10
ANCHOR
11
MINERAL WOOL WITH VEIL
14
WINDOWSILL
15
SELF-TURNING SCREW
WINDOW CONNECTION - VERTICAL GLYPH
1
ARTRYS BRACKET PASSIVE - BLP X/BMP X
2a.
ARTRYS L PROFILE - ALP 45/20/2
2b.
ARTRYS L PROFILE - ALP 45/55/2
5
ISOLATOR - PVC L/PVC M
6
CLADDING PANEL
8
ADHESIVE + TAPE
9
SELF-DRILLING SCREW
10
ANCHOR
11
MINERAL WOOL WITH VEIL
15
SELF-TURNING SCREW
Standard Aluminum profiles
Artrys construction systems are a wide, complete range of special products, designed with changes in mind. The base of the support system, the console and the aluminum profile, the service status in the upper corner of the spacing (e.g. 30 mm space at the connection of the profiles). Consoles are offered in three variants: aluminum, stainless steel, aluminum-plastic (i.e. passive).
Standard Aluminum profiles
Standard aluminium profiles are used to fix the panels. Depending on the fixing method and panel layout different types of profiles are used.
ARTRYS T PROFILE - ATP A/55/2
NAME OF PROFILE
A [mm]
ARTRYS T - PROFILE ATP 135/55/2
135
ARTRYS T - PROFILE ATP 105/55/2
105
ARTRYS T - PROFILE ATP 95/55/2
95
ARTRYS T - PROFILE ATP 75/55/2
75
Material:
Aluminum EN AW 6060 T6
DATA FOR PROFILE ATP 135/55/2
Jx = 41,01 cm4
Jy = 8,25 cm4
Wx = 1,78 cm³
Wy = 6,08 cm³
A = 3,76 cm²
Weight = 1,02 kg/m
DATA FOR PROFILE ATP 105/55/2
Jx = 19,30 cm4
Jy = 7,82 cm4
Wx = 1,75 cm³
Wy = 3,68 cm³
A = 3,16 cm²
Weight = 0,86 kg/m
DATA FOR PROFILE ATP 95/55/2
Jx = 14,29 cm4
Jy = 7,63 cm4
Wx = 1,73 cm³
Wy = 3,01 cm³
A = 2,96 cm²
Weight = 0,80 kg/m
DATA FOR PROFILE ATP 75/55/2
Jx = 7,18 cm4/
Jy = 7,03 cm4/
Wx = 1,69 cm³
Wy = 1,88 cm³
A = 2,56 cm²
Weight = 0,70 kg/m
ARTRYS L PROFILE - ALP A/B/2
NAME OF PROFILE
A [mm]
B [mm]
ARTRYS L - PROFILE ALP 45/55/2
45
55
ARTRYS L - PROFILE ALP 45/20/2
45
20
Material:
Aluminum EN AW 6060 T6
DATA FOR PROFILE ALP 45/55/2
Jx = 6,17 cm4
Jy = 3,77 cm4
Jx1 = 8,09 cm4
Jy1 = 1,85 cm4
Wx = 1,58 cm³
Wy = 1,10 cm³
Wx1 = 2,10 cm³
Wy1 = 1,04 cm³
A = 1,96 cm²
Weight = 0,53 kg/m
DATA FOR PROFILE ALP 45/20/2
Jx = 0,36 cm4
Jy = 2,71 cm4
Jx1 = 2,83 cm4
Jy1 = 0,23 cm4
Wx = 0,22 cm³
Wy = 0,95 cm³
Wx1 = 0,98 cm³
Wy1 = 0,19 cm³
A = 1,26 cm²
Weight = 0,34 kg/m
Thermostops
Artrys construction systems are a wide, complete range of special products, designed with changes in mind. The base of the support system, the console and the aluminum profile, the service status in the upper corner of the spacing (e.g. 30 mm space at the connection of the profiles). Consoles are offered in three variants: aluminum, stainless steel, aluminum-plastic (i.e. passive).
Thermostops
Thermostops (PVC washers) have a very low thermal conductivity coefficient and improve overall performance of the whole assembly. They are optional for stainless steel systems but are a necessity when aluminium brackets are installed as they prevent electrolytic corrosion by separating materials with a different pH.
ISOLATOR LARGE - PVC L
Material:
Light foamed boards
ISOLATOR MEDIUM - PVC M
Material:
Light foamed boards FFE07
Aluminum extensions
Artrys construction systems are a wide, complete range of special products, designed with changes in mind. The base of the support system, the console and the aluminum profile, the service status in the upper corner of the spacing (e.g. 30 mm space at the connection of the profiles). Consoles are offered in three variants: aluminum, stainless steel, aluminum-plastic (i.e. passive).
Aluminum extensions
The aluminium extension piece can be used with any bracket to extend its outreach or allow installers to deal with even greater unevennesses of the wall. This product proved to be very useful for different types of ceilings. Non-standard lengths of extensions are available upon request.
ARTRYS EXTENSION LARGE - EL 100
NAME OF EXTENSION
ARTRYS Extension Large - EL 100
Material:
Aluminum EN AW 6060 T6
ARTRYS EXTENSION MEDIUM - EM 100
NAME OF EXTENSION
ARTRYS Extension Medium - EM 100
Material:
Aluminum EN AW 6060 T6
Passive systems
Artrys construction systems are a wide, complete range of special products, designed with changes in mind. The base of the support system, the console and the aluminum profile, the service status in the upper corner of the spacing (e.g. 30 mm space at the connection of the profiles). Consoles are offered in three variants: aluminum, stainless steel, aluminum-plastic (i.e. passive).
Passive systems
Passive brackets are the newest addition to the Artrys product range. Made of both aluminium and plastic elements, the brackets are characterised by outstanding insulation parameters and practically eliminate the thermal bridge phenomenon. The strength and durability of the plastic insert have been improved by its special ribbing and the addition of fibre-glass.
They have to be used with PVC washers or PES tape to separate the aluminium element from the wall. Both sizes (BL and BM) come in various lengths from 180 to 280 mm (in 20 mm increments). 260 and 280 mm long brackets come only in large sizes (BLP) but are still used as FIX and LOS points.

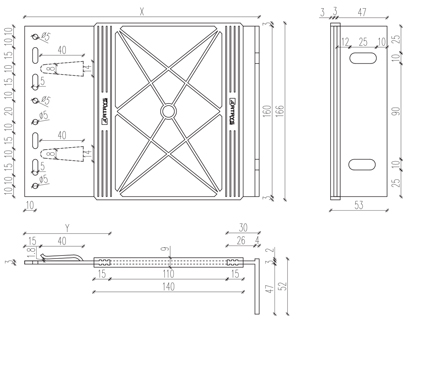

ARTRYS BRACKET LARGE PASSIVE - BLP X
NAME OF CONSOLE
X [mm]
Y [mm]
ARTRYS Bracket Large Passive - BLP 180
180
80
ARTRYS Bracket Large Passive - BLP 200
200
100
Material:
Aluminum EN AW 6060 T6
Fibre Polyamide PA66 GF50

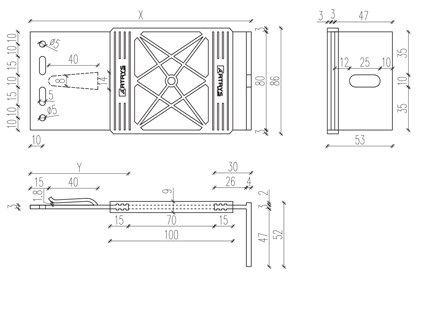

ARTRYS BRACKET MEDIUM PASSIVE - BMP X
NAME OF CONSOLE
X [mm]
Y [mm]
ARTRYS Bracket Medium Passive - BLP 180
180
80
ARTRYS Bracket Medium Passive - BLP 200
200
100
Material
Aluminum EN AW 6060 T6
Fibre Polyamide PA66 GF50
ARTRYS BRACKET LARGE PASSIVE - BLP X
NAME OF CONSOLE
X [mm]
Y [mm]
ARTRYS Bracket Large Passive - BLP 220
220
80
ARTRYS Bracket Large Passive - BLP 240
240
100
Material:
Aluminum EN AW 6060 T6
Fibre Polyamide PA66 GF50

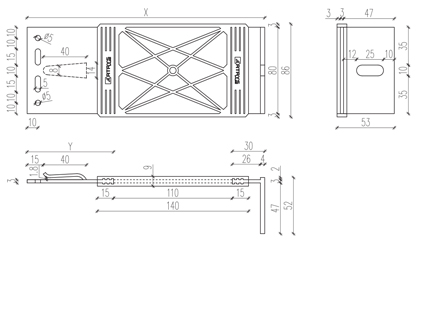

ARTRYS BRACKET MEDIUM PASSIVE - BMP X
NAME OF CONSOLE
X [mm]
Y [mm]
ARTRYS Bracket Medium Passive - BLP 220
220
80
ARTRYS Bracket Medium Passive - BLP 240
240
100
Material:
Aluminum EN AW 6060 T6
Fibre Polyamide PA66 GF50

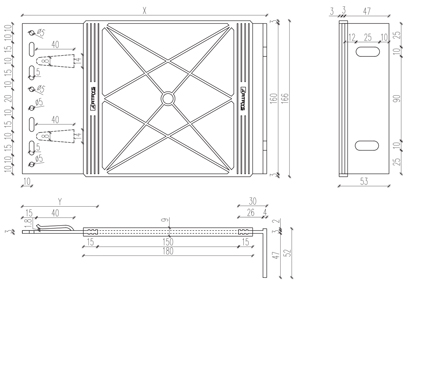

ARTRYS BRACKET LARGE PASSIVE - BLP X
NAME OF CONSOLE
X [mm]
Y [mm]
ARTRYS Bracket Large Passive - BLP 260
260
80
ARTRYS Bracket Large Passive - BLP 280
280
100
Material:
Aluminum EN AW 6060 T6
Fibre Polyamide PA66 GF50
Stainless steel systems
Artrys construction systems are a wide, complete range of special products, designed with changes in mind. The base of the support system, the console and the aluminum profile, the service status in the upper corner of the spacing (e.g. 30 mm space at the connection of the profiles). Consoles are offered in three variants: aluminum, stainless steel, aluminum-plastic (i.e. passive).
Stainless steel systems
Stainless steel brackets are used for larger loads. Similar to aluminium brackets, they are highly resistant to corrosion but at the same time maintain a lower thermal conductivity coefficient and improve overall thermal performance of the external partition. Because of these two factors they can be installed without PVC washers. Both sizes (BL and BM) come in various lengths from 60 to 300 mm (in 20 mm increments).
ARTRYS BRACKET LARGE STAINLESS - BLS X
NAME OF CONSOLE
X [mm]
ARTRYS Stainless Bracket Large - BLS 300
300
ARTRYS Stainless Bracket Large - BLS 280
280
ARTRYS Stainless Bracket Large - BLS 260
260
ARTRYS Stainless Bracket Large - BLS 240
240
ARTRYS Stainless Bracket Large - BLS 220
220
ARTRYS Stainless Bracket Large - BLS 200
200
ARTRYS Stainless Bracket Large - BLS 180
180
ARTRYS Stainless Bracket Large - BLS 160
160
ARTRYS Stainless Bracket Large - BLS 140
140
ARTRYS Stainless Bracket Large - BLS 120
120
ARTRYS Stainless Bracket Large - BLS 100
100
ARTRYS Stainless Bracket Large - BLS 80
80
ARTRYS Stainless Bracket Large - BLS 60
60
Material:
Stainless steel 1.4404/2B (316) lub 1.4301/2B (304)
ARTRYS BRACKET MEDIUM STAINLESS - BMS X
NAME OF CONSOLE
X [mm]
ARTRYS Stainless Bracket Medium - BMS 300
300
ARTRYS Stainless Bracket Medium - BMS 280
280
ARTRYS Stainless Bracket Medium - BMS 260
260
ARTRYS Stainless Bracket Medium - BMS 240
240
ARTRYS Stainless Bracket Medium - BMS 220
220
ARTRYS Stainless Bracket Medium - BMS 200
200
ARTRYS Stainless Bracket Medium - BMS 180
180
ARTRYS Stainless Bracket Medium - BMS 160
160
ARTRYS Stainless Bracket Medium - BMS 140
140
ARTRYS Stainless Bracket Medium - BMS 120
120
ARTRYS Stainless Bracket Medium - BMS 100
100
ARTRYS Stainless Bracket Medium - BMS 80
80
ARTRYS Stainless Bracket Medium - BMS 60
60
Material:
Stainless steel 1.4404/2B (316) lub 1.4301/2B (304)
Aluminum systems
Artrys construction systems are a wide, complete range of special products, designed with changes in mind. The base of the support system, the console and the aluminum profile, the service status in the upper corner of the spacing (e.g. 30 mm space at the connection of the profiles). Consoles are offered in three variants: aluminum, stainless steel, aluminum-plastic (i.e. passive).
Aluminum systems
Aluminium brackets are our standard solution. They are easy to install, highly resistant to corrosion and can be formatted on the construction site. In order to reduce thermal bridges and avoid direct connection with the wall they should be used together with our PVC washers. Both sizes (BL and BM) come in various lengths from 60 to 240 mm (in 20 mm increments).
ARTRYS BRACKET LARGE NEW - BLN X
NAME OF CONSOLE
X [mm]
ARTRYS Bracket Large New - BLN 240
240
ARTRYS Bracket Large New - BLN 220
220
ARTRYS Bracket Large New - BLN 200
200
ARTRYS Bracket Large New - BLN 180
180
ARTRYS Bracket Large New - BLN 160
160
ARTRYS Bracket Large New - BLN 140
140
ARTRYS Bracket Large New - BLN 120
120
ARTRYS Bracket Large New - BLN 100
100
ARTRYS Bracket Large New - BLN 80
80
ARTRYS Bracket Large New - BLN 60
60
Material:
Aluminum EN AW 6060 T6
ARTRYS BRACKET MEDIUM NEW - BMN X
NAME OF CONSOLE
X [mm]
ARTRYS Bracket Medium New - BMN 240
240
ARTRYS Bracket Medium New - BMN 220
220
ARTRYS Bracket Medium New - BMN 200
200
ARTRYS Bracket Medium New - BMN 180
180
ARTRYS Bracket Medium New - BMN 160
160
ARTRYS Bracket Medium New - BMN 140
140
ARTRYS Bracket Medium New - BMN 120
120
ARTRYS Bracket Medium New - BMN 100
100
ARTRYS Bracket Medium New - BMN 80
80
ARTRYS Bracket Medium New - BMN 60
60
Material:
Aluminum EN AW 6060 T6
